Spherolinder Kinematic Mount

Ruggedized kinematic mount system.

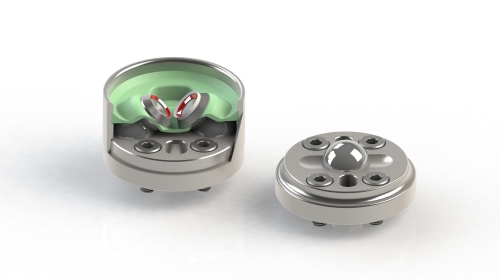

Modular Kinematic Mounts

Ruggedized kinematic mount system for
use in industrial enviroments.
Technology Comparison

BiCollar vs. Spherolinder

Kinematic Mounts for Optical Tables

Low-cost modular kinematic mount system for use in lab environments.

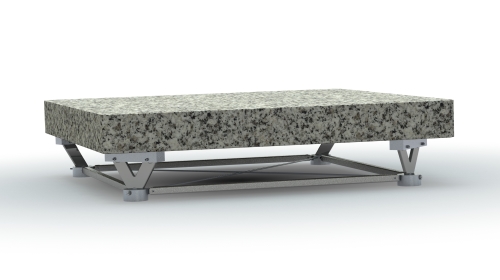

Four Legged Foundation System

A four-legged kinematic foundation system for optical beds.

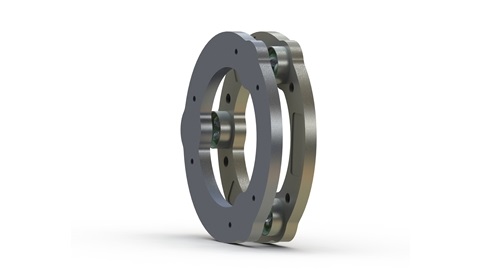

Integrated/Embedded Mounts

Custom plate-to-plate interface, per you specifications.

Online Purchasing
Sales support: ,

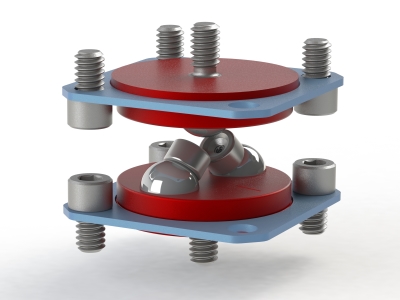

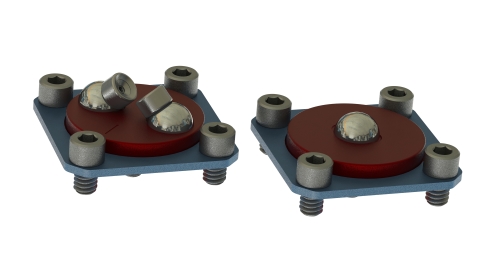

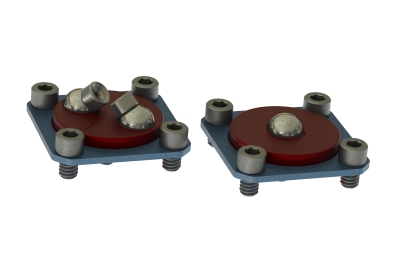

Kinematic Mounts for Optical Tables (OTx)

OTx products are intended for lab-duty use, and are designed to attach directly to optical tables and breadboards. The mount is designed for horizontal applications, room temperature, atmospheric environment. Static load limit is 500 kg per mount point, and both 3-legged and 4-legged products are available. OTM for Metric, OTS for Standard optical grids.

For more information, see the Product page


Metric Grid 3-Groove (2-2-2) SetOTM-3G-SET$900
3-Groove (2-2-2) TopOTM-3G-TOP$600
3-Groove (2-2-2) BottomOTM-3G-BTM$300
Cone-Groove-Flat (3-2-1) SetOTM-CGF-SET$900
Cone-Groove-Flat (3-2-1) TopOTM-CGF-TOP$600
Cone-Groove-Flat (3-2-1) BottomOTM-CGF-BTM$300
4-legged (2-2-1-1) SetOTM-2G2D-SET$1200
4-legged (2-2-1-1) TopOTM-2G2D-TOP$800
4-legged (2-2-1-1) BottomOTM-2G2D-BTM$400
4-legged (3-1-1-1) SetOTM-C3D-SET$1200
4-legged (3-1-1-1) TopOTM-C3D-TOP$800
4-legged (3-1-1-1) BottomOTM-C3D-BTM$400
Metric Grid 3-Groove (2-2-2) SetOTS-3G-SET$900
3-Groove (2-2-2) TopOTS-3G-TOP$600
3-Groove (2-2-2) BottomOTS-3G-BTM$300
Cone-Groove-Flat (3-2-1) SetOTS-CGF-SET$900
Cone-Groove-Flat (3-2-1) TopOTS-CGF-TOP$600
Cone-Groove-Flat (3-2-1) BottomOTS-CGF-BTM$300
4-legged (2-2-1-1) SetOTS-2G2D-SET$1200
4-legged (2-2-1-1) TopOTS-2G2D-TOP$800
4-legged (2-2-1-1) BottomOTS-2G2D-BTM$400
4-legged (3-1-1-1) SetOTS-C3D-SET$1200
4-legged (3-1-1-1) TopOTS-C3D-TOP$800
4-legged (3-1-1-1) BottomOTS-C3D-BTM$400

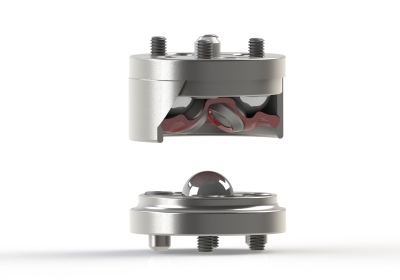

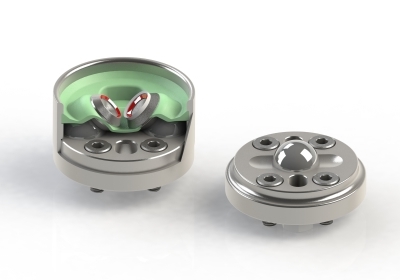

Modular Kinematic Mounts (MKM)

MKM products are intended for industrial duty, are designed for high-cycle operation, high loads, and are available in various sizes. Both 3-legged and 4-legged configurations are available.

For more information, see Product page


BC0500 3-Groove (222) Basic SetBC0500-MKM-3G-SET$1350
RetainersBC0500-MKM-3G-RTN$300
Top side onlyBC0500-MKM-3G-TOP$900
Top Extended TravelBC0500-MKM-3G-TOPx$1200
Bottom side onlyBC0500-MKM-3G-BTM$450
Spherolinder adapterBC0500-MKM-3G-SPH$300
BC0500 Cone-Groove-Flat (321) Basic SetBC0500-MKM-CGF-SET$1350
Top side onlyBC0500-MKM-CGF-TOP$900
Bottom side onlyBC0500-MKM-CGF-BTM$450
BC0500 4-Legged (2211) Basic SetBC0500-MKM-2G2D-SET$1800
Bottom (C) side onlyBC0500-MKM-2G2D-BTM$600
Top (V) side onlyBC0500-MKM-2G2D-TOP$1200
BC0500 4-Legged (3111) Basic SetBC0500-MKM-C3D-SET$1200
Bottom (C) side onlyBC0500-MKM-C3D-BTM$400
Top (V) side onlyBC0500-MKM-C3D-TOP$800
BC0500 6-Legged Basic SetBC0500-MKM-6D-SET$2700
BC0375 Coming Soon!
BC0750 Coming Soon!

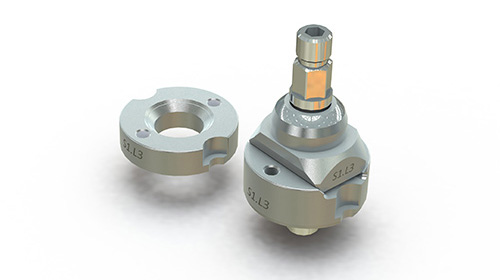

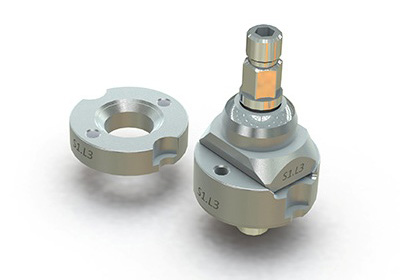

Spherolinder Modular Mounts (SPH)

The Spherolinder is our original product line. It is intended for industrial duty, and has the highest load capacity for a given mating surface interface radius. All mating components are fabricated from hardened and precision ground 440C stainless steel. SPH mounts always have three mating elements.

For more information, see Product page
M10 Side A (V and Spherolinders, blind)SPH-M10-BTM-BLIND$2970
Side A (V and Spherolinders, thru)SPH-M10-BTM-THRU$3120
Side B (Cone blocks, common)SPH-M10-TOP$975
M25 Side A (V and Spherolinders, blind)SPH-M25-BTM-BLIND$3255
Side A (V and Spherolinders, thru)SPH-M25-BTM-THRU$3435
Side B (Cone blocks, common)SPH-M25-TOP$1125
M50 Side A (V and Spherolinders, blind)SPH-M50-BTM-BLIND$9000
Side A (V and Spherolinders, thru)SPH-M50-BTM-THRU$9600
Side B (Cone blocks, common)SPH-M50-TOP$2700
